NexzDAS NL300

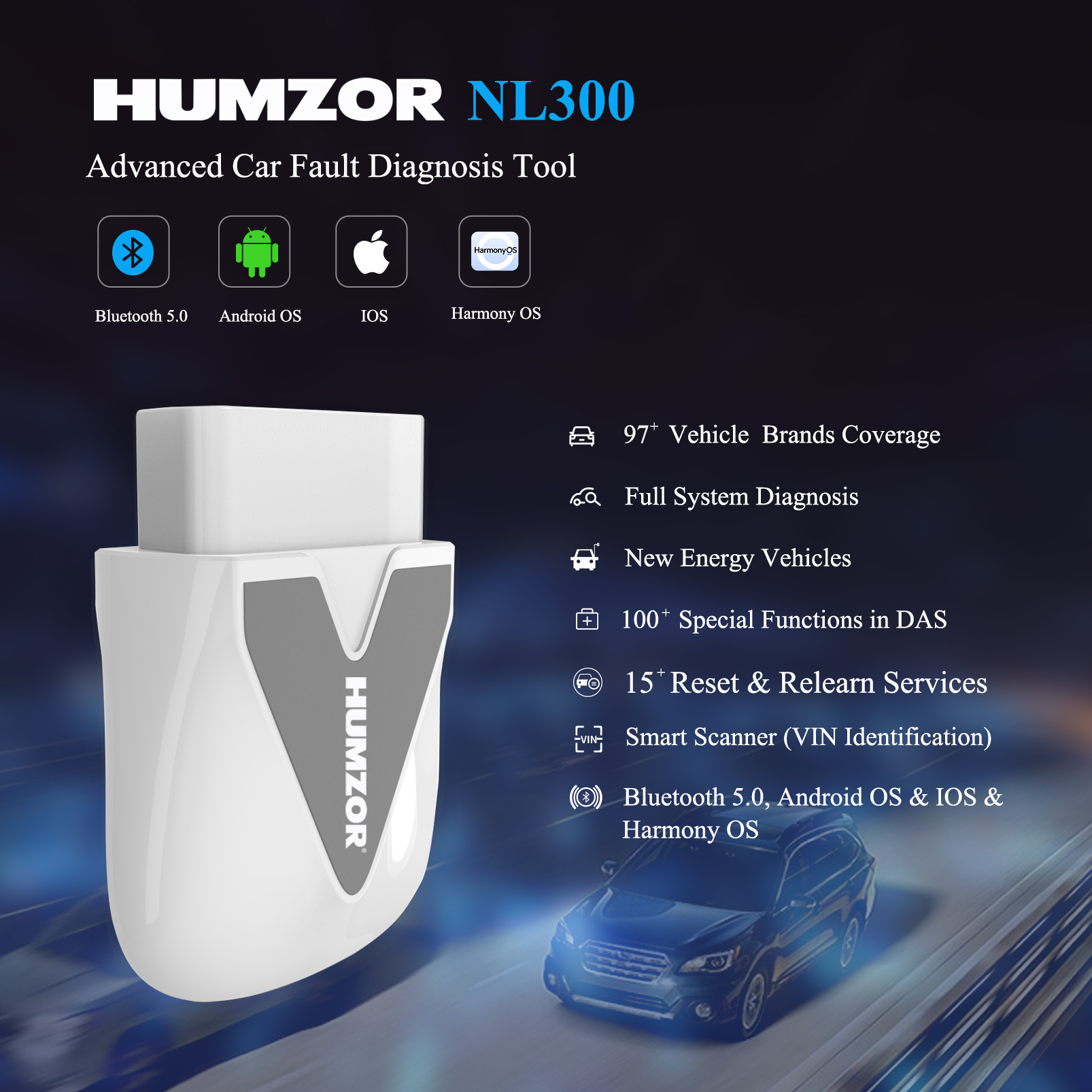

NexzDAS NL300, as advanced Car OBD2 Fault Diagnosis scanner, works on full system diagnosis for car owners, combining with 15 special functions and reset & coding & relearn services. The device is connected via Bluetooth and then can be operated directly on the phone, which is simple and convenient. Also, the fault code query function contains a 40000+ code base.
- Description
- Specifications
- Video
- Downloads
This Blue tooth car troubleshooter is specially designed to give you quick access to the vehicle system for various regular service
and maintenance performance. Some commonly used special reset services are listed for your reference:
Oil reset: Allows you to reset the maintenance mileage and data interval after changing the oil to recalculate the engine oil life
system.
TPMS: Make the tpms sensor display the sensor ID from the vehicle ECU, enter the TPMS sensor replacement ID and activate the tpms
sensor.
Injector adjustment: The diesel fuel injector code needs to program ID and parameters to ECU for precise communication and fuel
injection control system.
EPB: The replacement of brake pads or motors is very important to maintain the safety and efficiency of the electronic brake
system.
DPF: Especially suitable for diesel particulate filter system, with DPF regeneration, DPF component replacement teaching and DPF
teaching after replacing the engine control unit.
TPS/ThrottleSensor: The throttle position system sensor of the vehicle is connected to the butterfly spindle and is mainly used to
monitor the throttle position in the internal combustion engine. Due to its position, the throttle position sensor can effectively
observe the position of the throttle butterfly valve.
- Operating SystemAndroid & IOS
- ProcessorARM 32-bit Cortex processor
- CommunicationsBluetooth 5.0
- Input VoltageDC 9 -32V
- Operating Temperaure-20 to 70°C(14-158°F),Relative Humidity:<90%
- Storage Temperaure-40 to 85°C(-40-158°F),Relative Humidity:<90%
- Dimension78mm*30mm*58mm
